Interface your external communications radio to your intercom iriBoost

Product release – iriBoost

Today IWCS releases our brand new product named iriBoost.

iriBoost is a 100 Watt Class D amplifier which interfaces directly into an iriSound Intercom System.

On many vessels a hailer or a PA system is needed, but always mounted as a Stand Alone unit. By using iriBoost, the hailer/PA system can be integrated in the iriSound Intercom System.

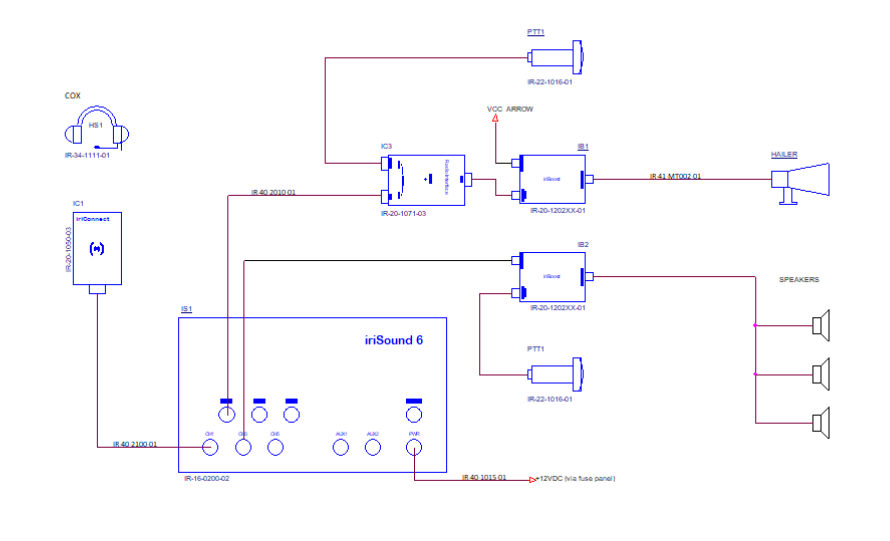

There are 2 ways to integrate iriBoost.

By using only an iriBoost on an iriSound channel, one or more speakers can driven by the 100 Watt Class D amplifier. iriBoost has volume adjust directly on the front, for securing the speakers to burn. iriBoost is connected in-line between iriSound and the Hailer/Speaker(s). External 12V power is conencted into iriBoost as well. If the hailer is not used as an open gateway, a PTT can be connected on the power lead. Any user can now activate the PTT and speak loud and clear through their iriComm headset.

By adding a Radio Interface between iriSound and iriBoost, a remote PTT function becomes available. The radio interface is intelligent, and can activate the Hailer/Speaker(s). Directly from any wireless iriComm 3.0 headset, from a headset interface for a wired iriComm 3,0 or from iriSelect, the hailer can be selected like any other radio.. This gives full flexibilty.

Use iriBoost on:

  • Ferries
  • MOBs
  • Border Patrols
  • Coast Guard Vessels
  • Safari Boats
  • Whale watching boats
  • Fishing ships as deck speaker
  • Diving boats
  • and more
Connection

Frequency range: 20-20.000 Hz
Fuse: 10 Amp
Operating Temp. -40-85℃
Size: 112 X 70 X 37 mm – plus external leads
Weight: 282 g – plus leads
